CleanView® inspection tables
The STERIGENE solution for your manual visual inspection​
The applicable pharmacopoeias specify that a manual visual inspection phase must now take place following automatic or semi-automatic visual inspection phases. The aim is to limit the quantity of defective batches and thereby reduce production costs and the environmental impact of their destruction.​mirage pharmaceutique​
Developed entirely by STERIGENE, CleanView® inspection tables are designed and manufactured in France. They are perfectly suited to your manual visual inspection phases thanks to their numerous ergonomic and technical features, enabling your operators to visually inspect multiple loads in compliance with applicable standards.
CleanView® inspection tables are available with multiple options to meet all manual visual inspection needs.
The different models
Large model
- Compliant with European Pharmacopoeia 2.9.20, USP 1790, Japanese 6.11 and Chinese pharmacopoeias
- Inspection zone compliance: 600 x 200 x 200 mm (W x D x H)
- Dimensions: 1,175 x 680 x 720 mm (W x D x H)
- Reference: CVL
Small model
- Compliant with European Pharmacopoeia 2.9.20, USP 1790, Japanese 6.11 and Chinese pharmacopoeias
- Inspection zone compliance: 400 x 200 x 200 mm (W x D x H)
- Dimensions: 725 x 680 x 720 mm (W x D x H)
- Reference: CVS
High Intensity model
- Compliant with Japanese, European Pharmacopoeia 2.9.20, USP 790, Japanese 6.11 and Chinese pharmacopoeias
- Inspection zone compliance: 300 x 150 x 150 mm (W x D x H)
- Dimensions: 725 x 680 x 670 mm (W x D x H)
- Reference: CVHI
Custom models
21 CFR Part 11 compliance, conveyor system, lateral opening, suspension hook for bags…
Do not hesitate to contact us so that we can design the custom model that meets your specific constraints.​
Advantages
Inspection zone
The inspection zone has been developed to comply with applicable standards and to provide your operators with optimal visual inspection conditions.
- Anti-glare black/white angled background
- Inspection zone defined by an indicator
- Qualification protocols
Control screen
Operated via a 5″ touchscreen, the customisable software offers quick and easy handling. All settings are managed through this control system.
- Different user profiles
- Three-dimensional mapping
- Multiple light intensity levels
- Pre-settings in accordance with European Pharmacopoeia 2.9.20, USP 790, Japanese 6.11 and Chinese pharmacopoeias (and Japanese pharmacopoeia for the CVHI model)
LED lighting
As lighting is a predominant element of visual inspection, we have developed LED lighting that provides optimal visual inspection precision.
- Homogeneity, stability and repeatability of LED lighting
- Multiple LED rows
- Independent settings
- Long service life
Worktop
Drawing on the SYNEXIN Group's expertise in the manufacture of specialist cleanroom furniture, we have developed a worktop meeting the requirements of controlled atmosphere environments.
- 100% HPL Compact worktop
- Ergonomic worktop reducing the risk of musculoskeletal disorders (MSDs)
- Worktop adapting to all body types
The different leg configurations

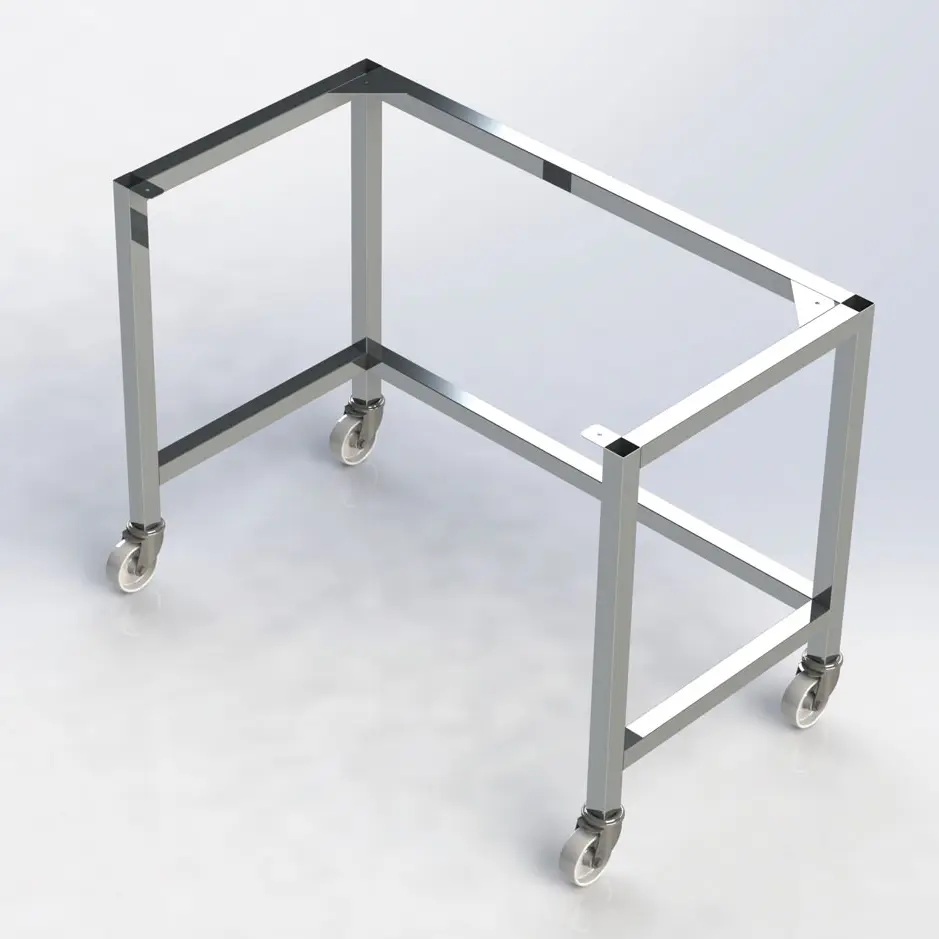

Fixed legs (with or without castors)
- AISI 304 stainless steel structure
- With or without white polyamide castors (Ø 100mm) with 2 front brakes

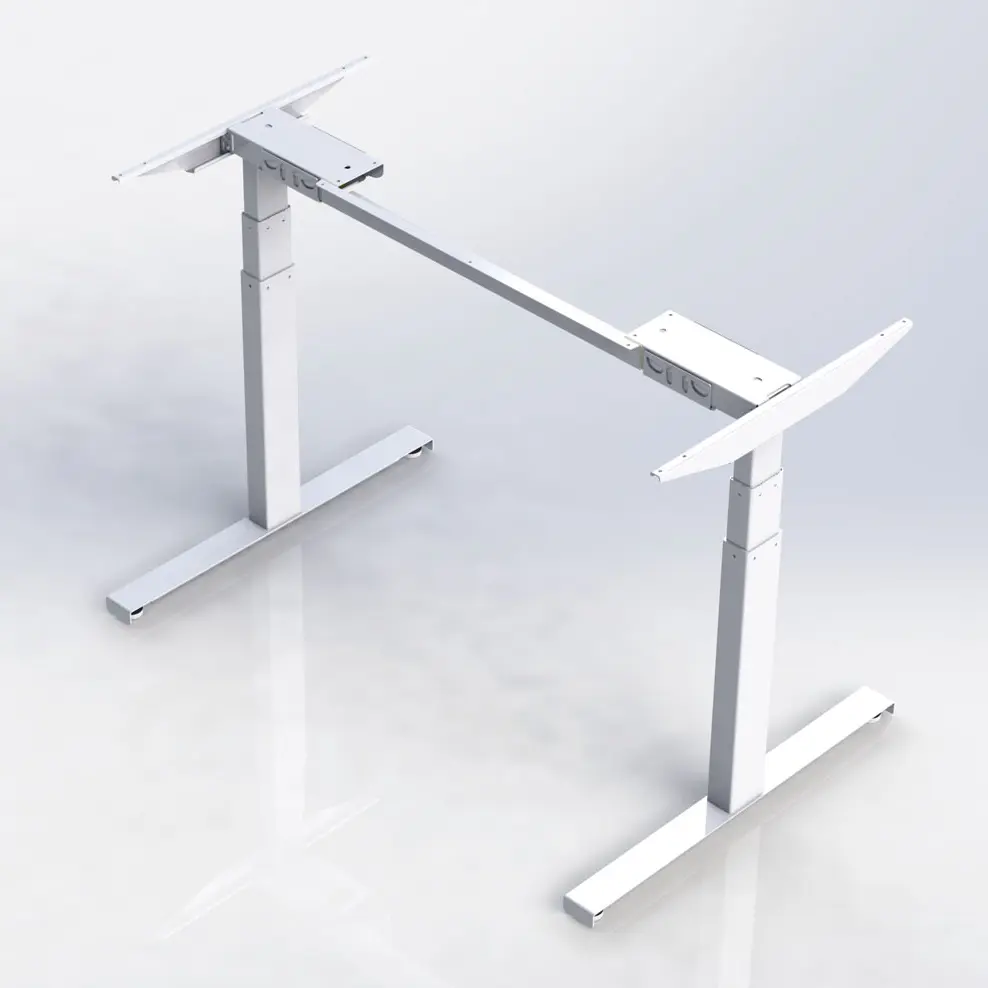

Telescopic legs (with or without castors)
- Electrically operated painted steel legs
- With or without white polyamide castors (Ø 100mm) with 2 front brakes
- HMI-controlled height adjustment​
Telescopic stainless steel legs (with or without castors)
- Electrically operated AISI 304 stainless steel legs
- With or without white polyamide castors (Ø 100mm) with 2 front brakes
- HMI-controlled height adjustment​
Découvrez notre table de mirage CleanView®,
petit ou grand modèle
From manufacture to installation at your site, discover all the features of our visual inspection table.
- French manufacturing
- Compatible with Grade B, C or uncontrolled zones
- Compliant with European Pharmacopoeia 2.9.20, USP 790, Japanese 6.11 and Chinese pharmacopoeias
- 2 versatile models
- Multiple ergonomic options
- Qualification protocols
They talk about the CleanView® inspection table
Discover the feedback from various users of our inspection table.
"I felt it was the equipment perfectly suited to our needs: ergonomic, straightforward, compliant with the EP (…)"
Read the interview >​​​​
"There are several reasons. The relevance of the product, its representativeness among industrial users (…)"
Les accessoires des tables de mirage CleanView®
Arm rest
To minimise wrist and shoulder fatigue during visual inspection phases, we offer polyurethane foam arm rests.

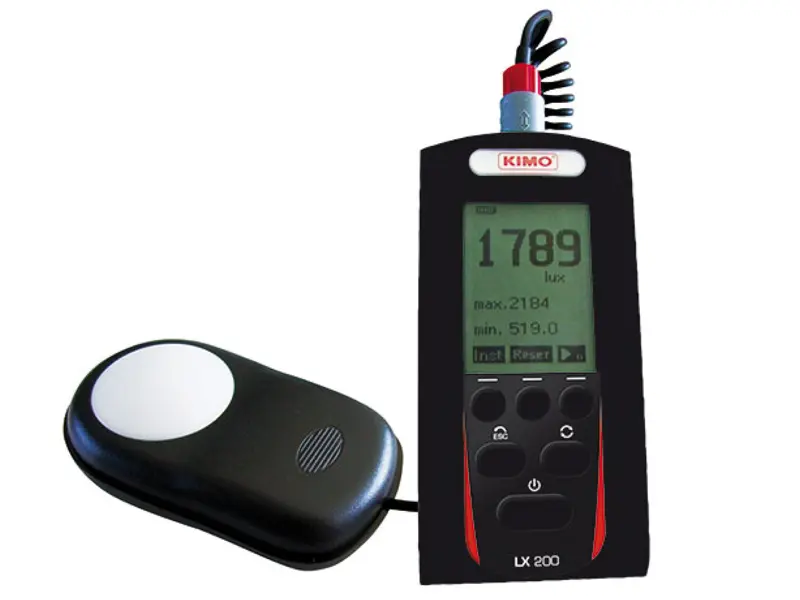

Portable lux meter
To carry out calibration of the light intensity of your CleanView® inspection table, we offer a versatile precision instrument. Supplied with a calibration certificate. Can be sold with its stainless steel stand and stainless steel feet. Easy to install.
Magnifying lamp
LED lamp and magnifying glass with different lenses. Made from anodised aluminium and plastic, it attaches to the inspection table via a clamp-vice system.
