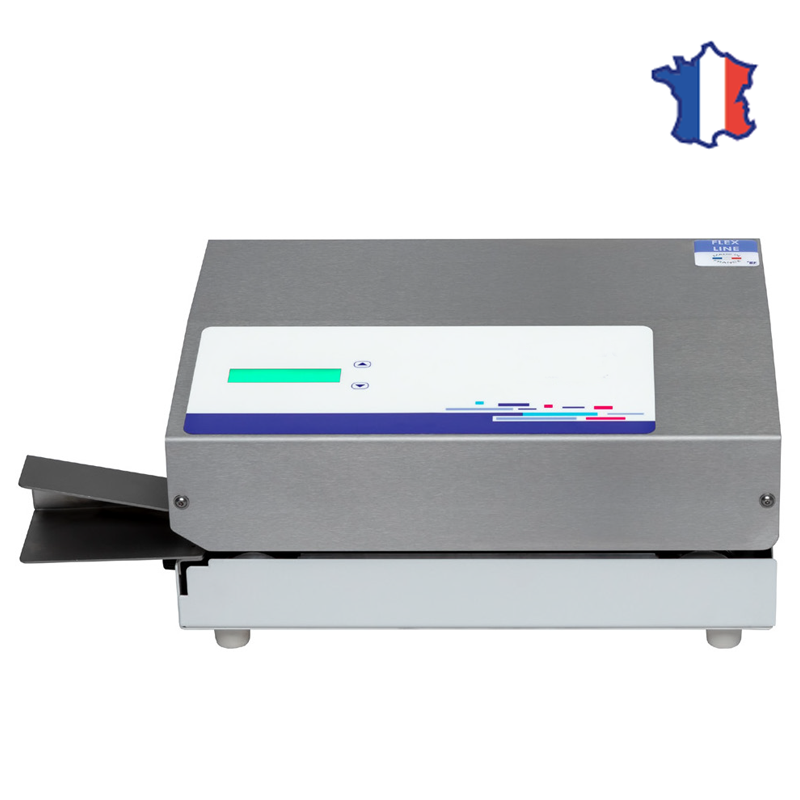

e-PRINT LINE Heat Sealer, Printing for Enhanced Traceability
The top-of-the-range sealer in the PRINT LINE offers ultra-fast set-up thanks to its barcode scanner and allows your customised data to be printed on pouches (dates, departments, operators, batches, etc.). Its intuitive, secure interface provides immediate display and control of all the ISO parameters.
• Large intuitive colour touchscreen
• Suitable for all types of reels and peelable pouches used in sterilisation
(steam, Tyvek®, EO, aluminium, etc.)

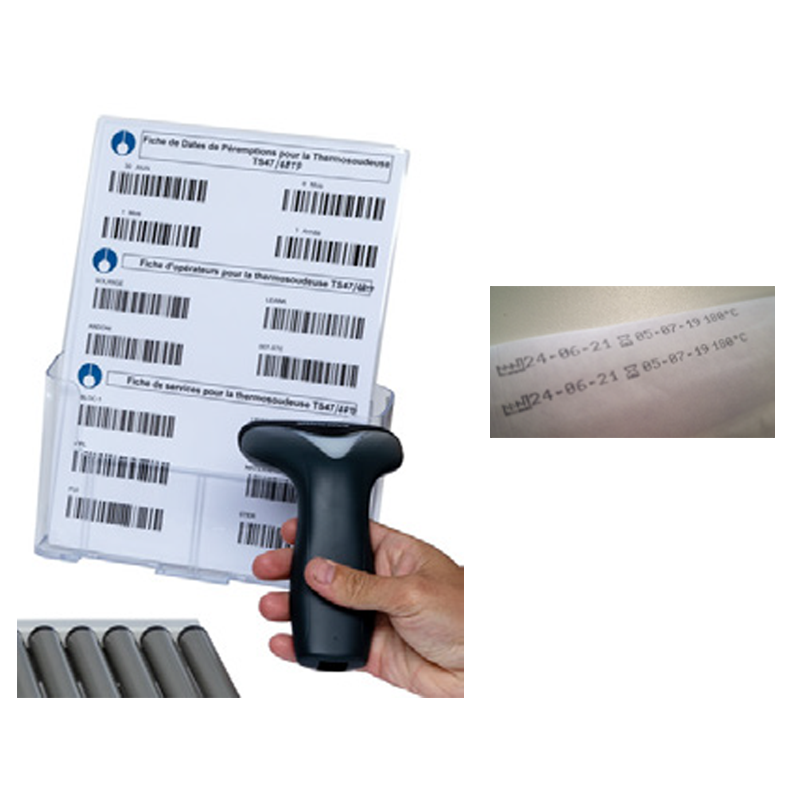

• SCANNER reader and barcode editing software supplied
• Pre-programming of 5 operating temperatures
• Monitoring of the ISO parameters
• Integrated digital maintenance log
• LAN - ETHERNET / USB / PRINTER available as an option
• Monitoring and traceability options available (USB/PRINTER)
> TECHNICAL SPECIFICATIONS:
• Standards: CE / EN 868-5 / DIN 58953-7
• ISO 11607-2 standard: routine monitoring & validation of the critical temperature & pressure parameters
• Automatic shutdown in the event of critical parameter drift
• Calibration certificate (COFRAC-accredited) as standard
• Seals: 15 mm / flat
• Temperature: 20-230°C with 2% accuracy
• Display: colour touchscreen
• Intuitive multifunction menu (graphs, counters, various messages, multilingual, alphanumeric keypad, etc.)
• Paper guide: depth-adjustable (0-30 mm from the pouch edge)
• Environmentally responsible: motor start and stop by automatic detection sensor
> OPTIONS:

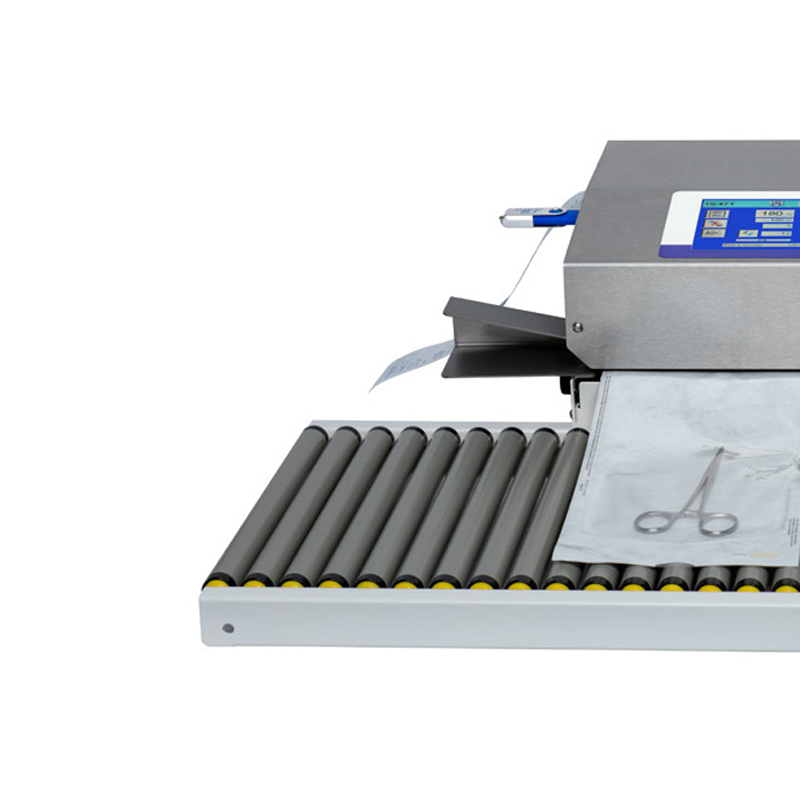

• Conveyor rollers

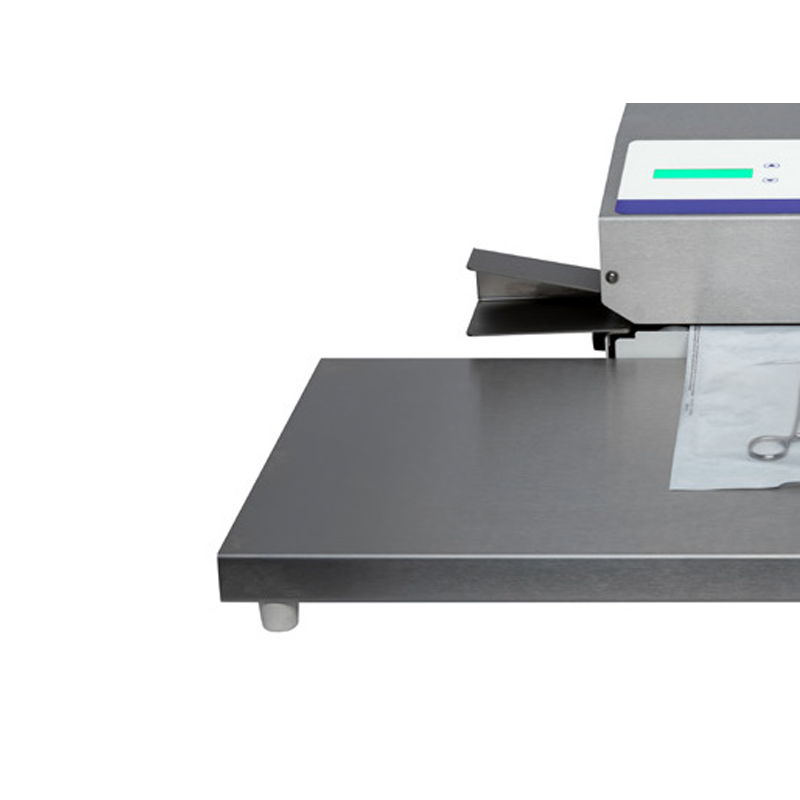

• Stainless steel stand

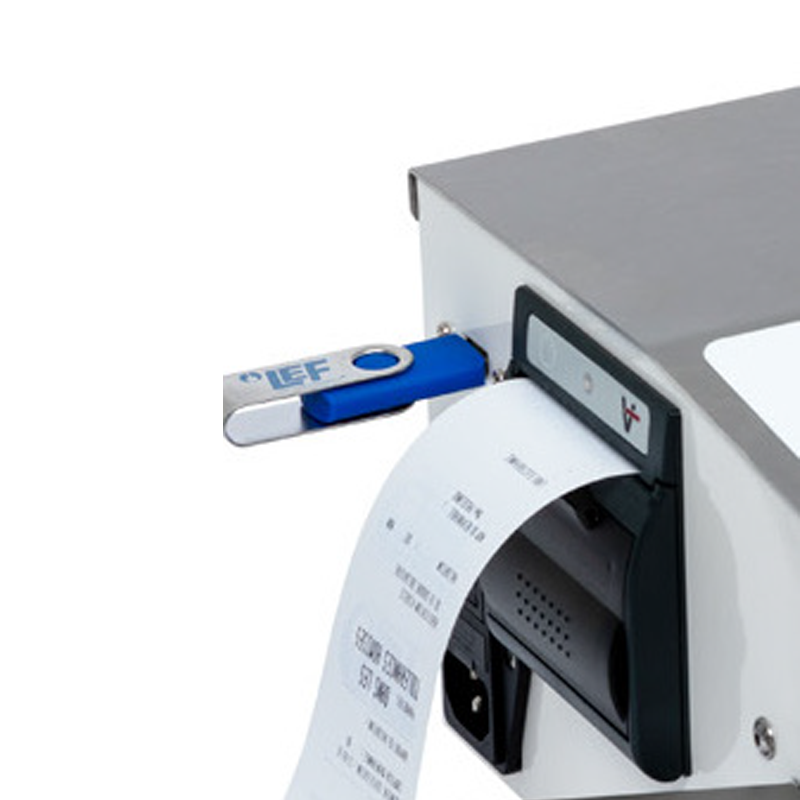

• OQ Edit

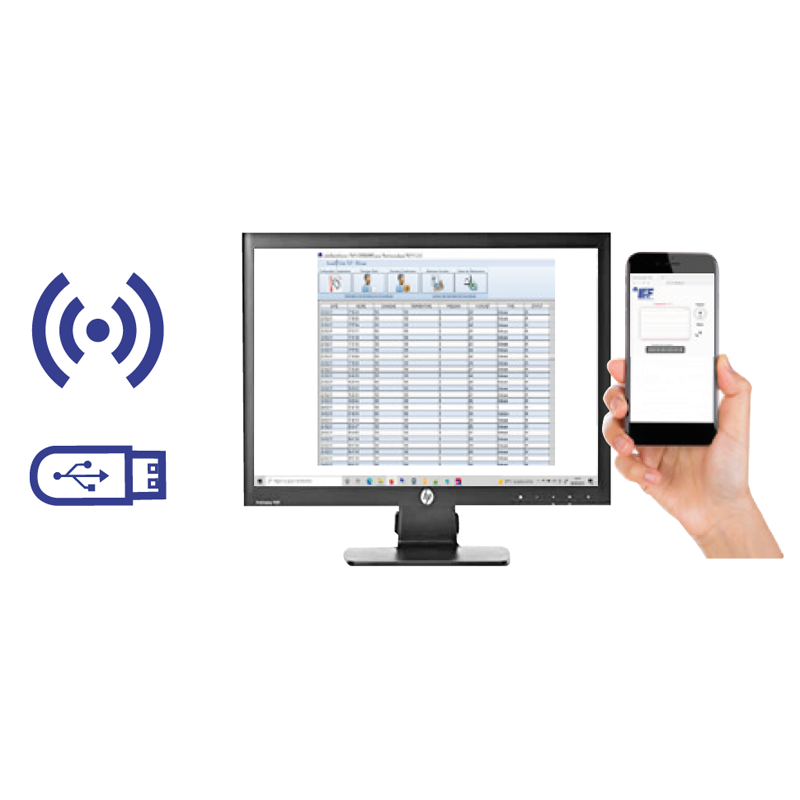

• Ethernet & USB network connection
Please contact us to discover our full range of models.
